OCI Block Volume

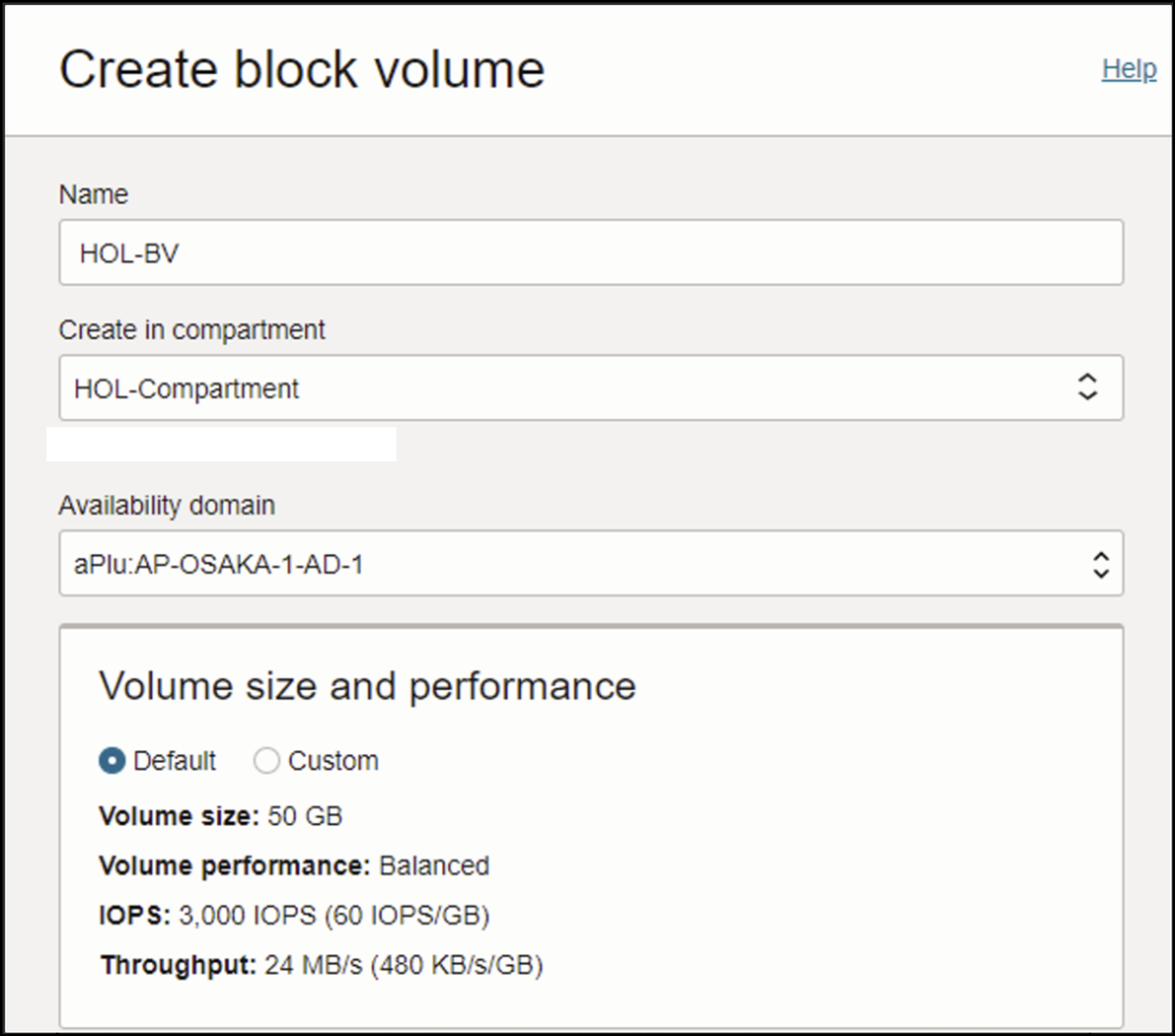

Block Volume 생성

Block 볼륨을 생성합니다.

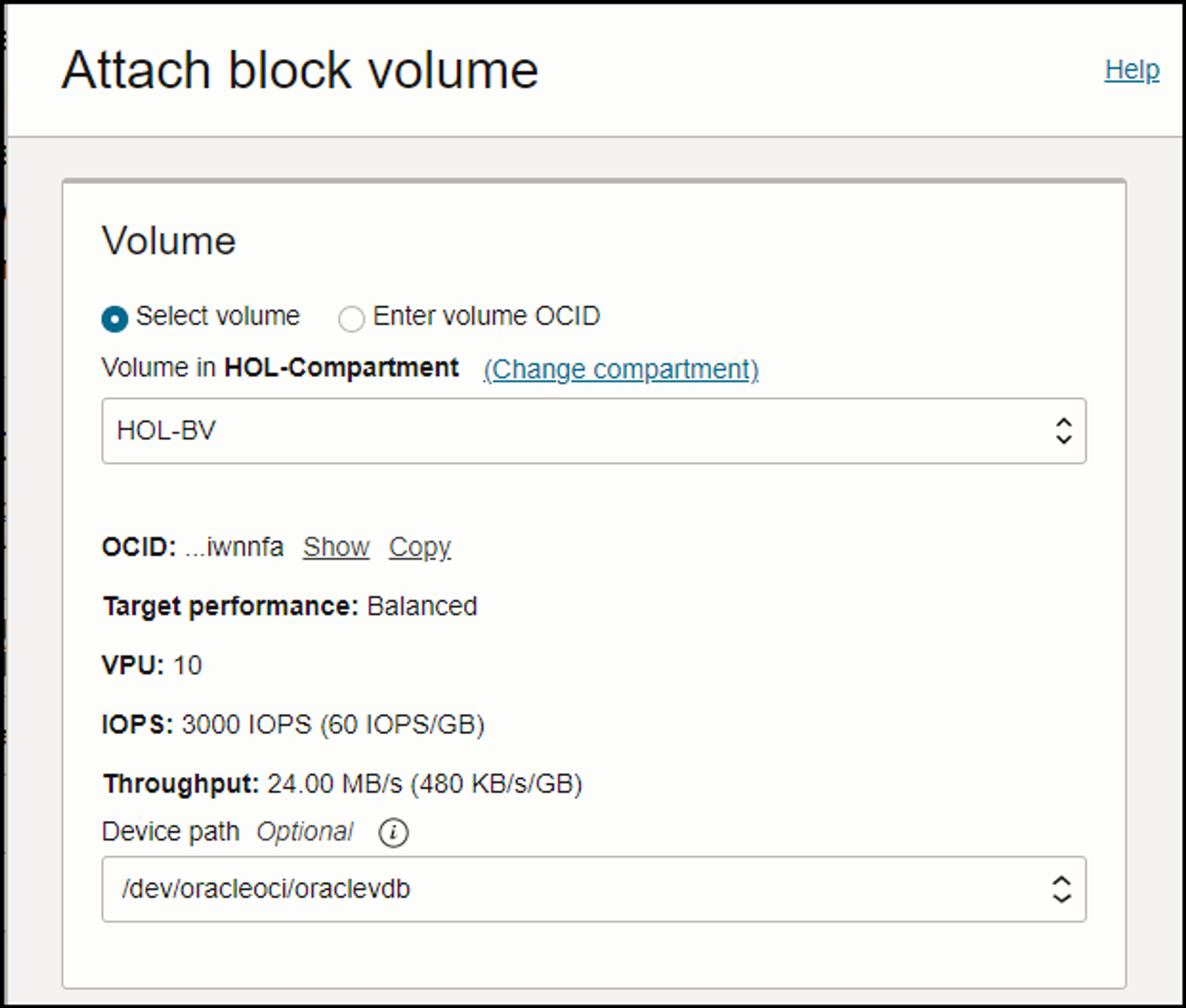

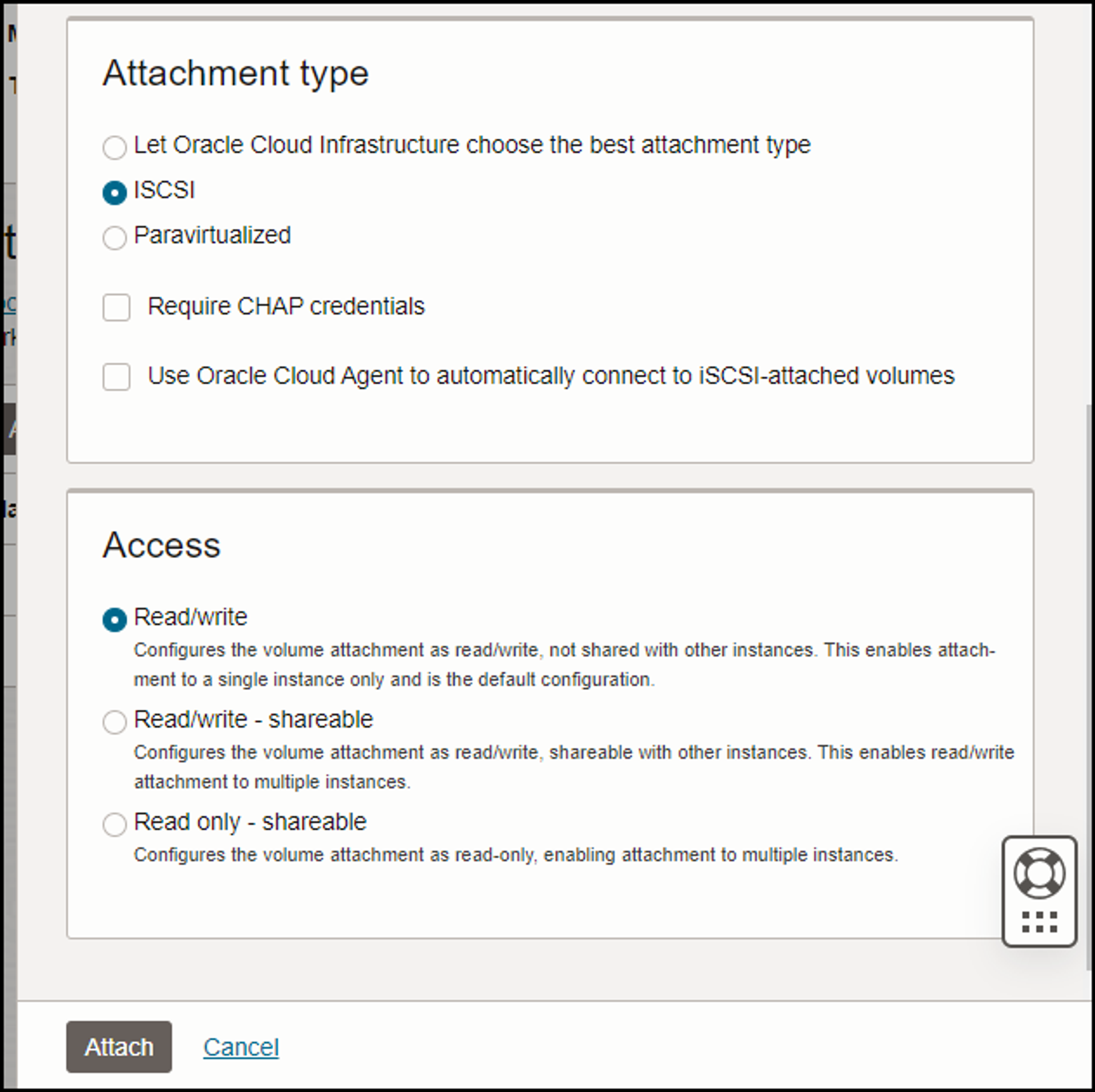

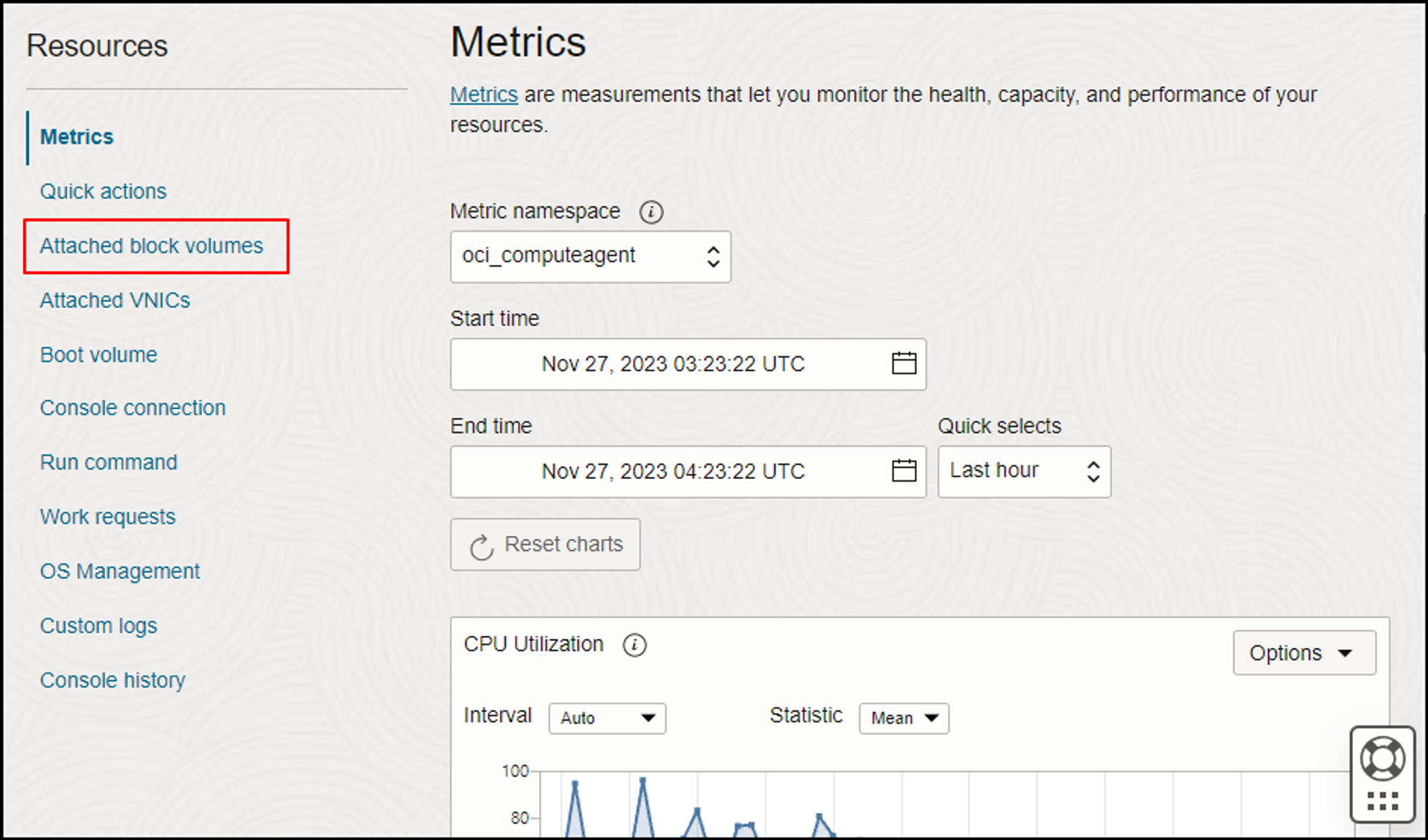

인스턴스에 Block Volume Attache

인스턴스에 생성한 Block Volume을 부착합니다.

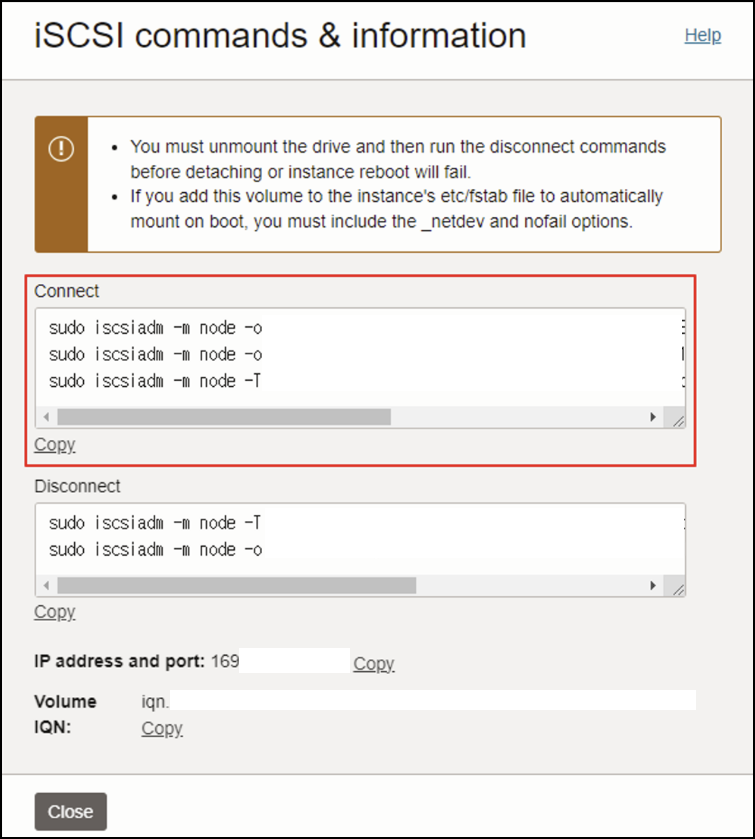

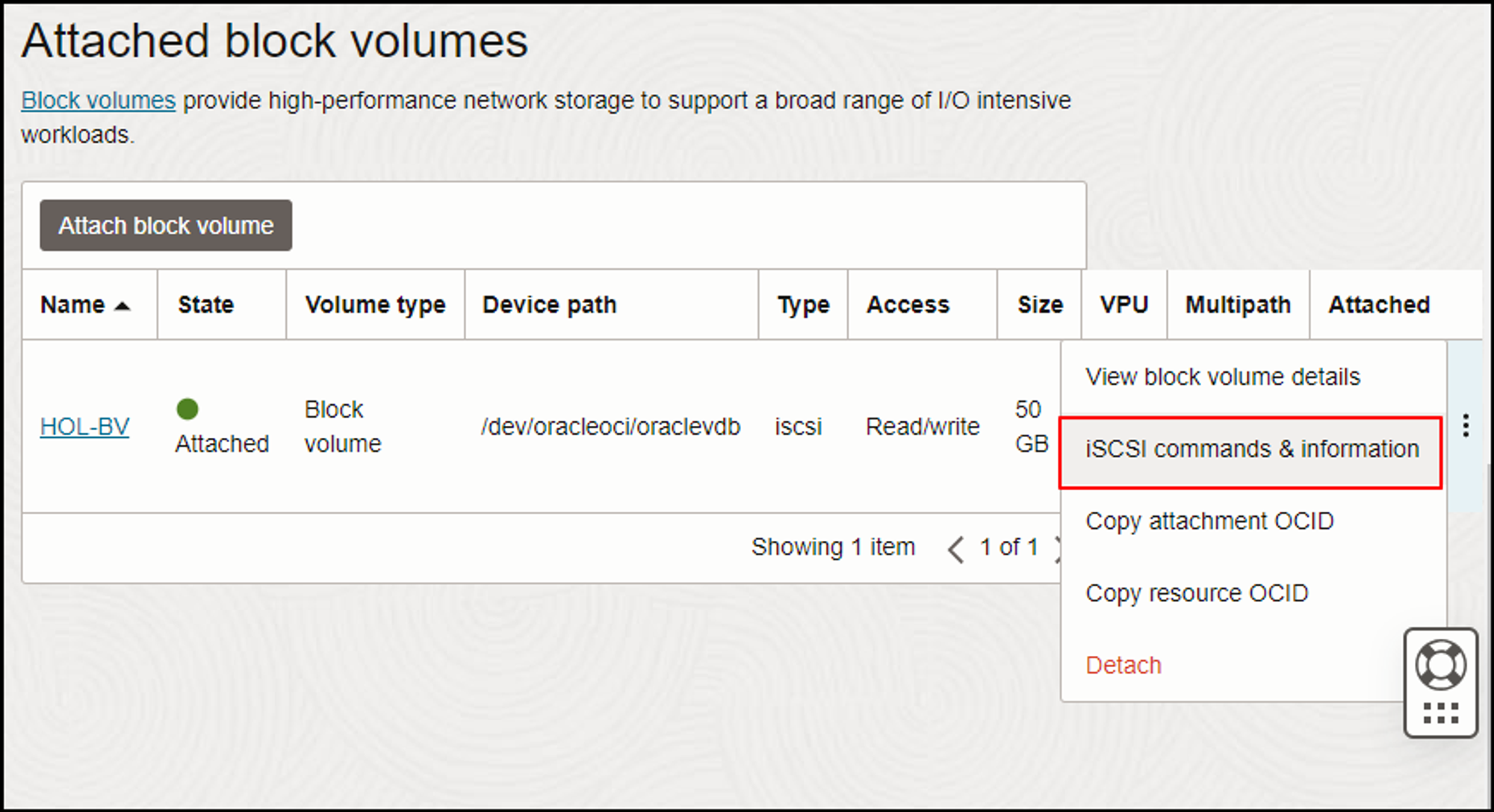

iSCSI Commands

Connect 명령어를 통해서 연결 합니다.

sudo iscsiadm -m node -o new -T ~~
sudo iscsiadm -m node -o update -T ~~
sudo iscsiadm -m node -T iqn ~~


#확인
ls -l /dev/oracleoci/oraclevd*

lrwxrwxrwx. 1 root root 6 Nov 27 03:17 /dev/oracleoci/oraclevda -> ../sda
lrwxrwxrwx. 1 root root 7 Nov 27 03:16 /dev/oracleoci/oraclevda1 -> ../sda1
lrwxrwxrwx. 1 root root 7 Nov 27 03:16 /dev/oracleoci/oraclevda2 -> ../sda2
lrwxrwxrwx. 1 root root 7 Nov 27 03:16 /dev/oracleoci/oraclevda3 -> ../sda3
lrwxrwxrwx. 1 root root 6 Nov 27 04:26 /dev/oracleoci/oraclevdb -> ../sdb



#파일시스템
sudo mkfs -t ext4 /dev/oracleoci/oraclevdb

# 마운트
sudo mkdir /mnt/disk1
sudo mount /dev/oracleoci/oraclevdb /mnt/disk1

[root@webserver1 ~]# df -h
Filesystem                  Size  Used Avail Use% Mounted on
devtmpfs                    423M     0  423M   0% /dev
tmpfs                       469M     0  469M   0% /dev/shm
tmpfs                       469M   19M  450M   4% /run
tmpfs                       469M     0  469M   0% /sys/fs/cgroup
/dev/mapper/ocivolume-root   36G  8.2G   28G  23% /
/dev/mapper/ocivolume-oled   10G  198M  9.8G   2% /var/oled
/dev/sda2                  1014M  608M  407M  60% /boot
/dev/sda1                   100M  5.1M   95M   6% /boot/efi
tmpfs                        94M     0   94M   0% /run/user/0
tmpfs                        94M     0   94M   0% /run/user/1000
tmpfs                        94M     0   94M   0% /run/user/987
/dev/sdb                     49G   24K   47G   1% /mnt/disk1



영구 마운트

ls -l /dev/oracleoci/oraclevd*

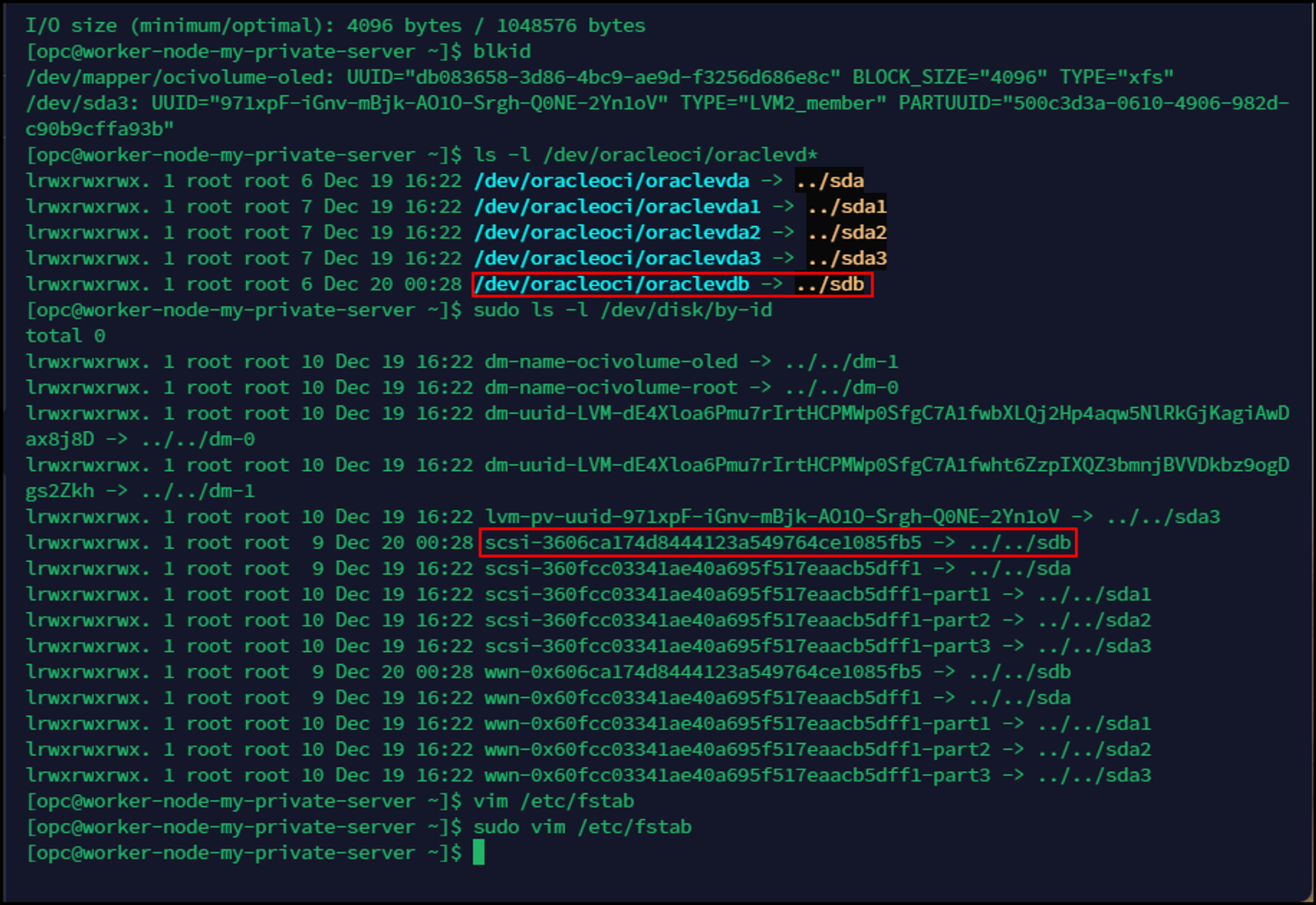

#Find the SCSI ID for the newly attached volume
sudo ls -l /dev/disk/by-id

/dev/disk/by-id/scsi-3606ca174d8444123a549764ce1085fb5

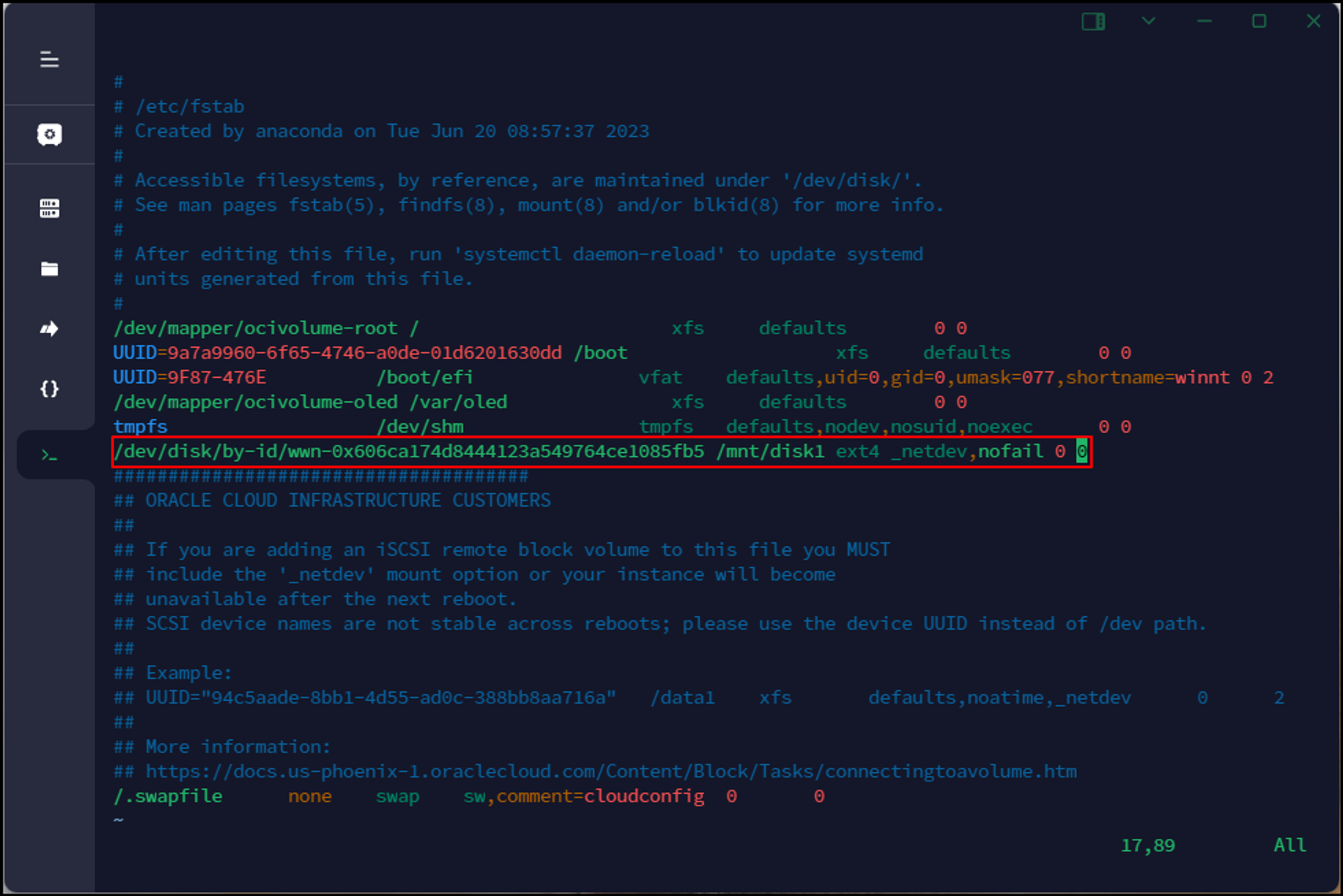

vim /etc/fstab

/dev/disk/by-id/scsi-3606ca174d8444123a549764ce1085fb5 /mnt/disk1 ext4 _netdev,nofail 0 0

Following are descriptions of these field values:

• Device: Specified using the SCSI ID:
• /dev/disk/by-id/scsi-3606ca174d8444123a549764ce1085fb5
• Mount point: The mount point created in the previous step: /mnt/volume1
• Type: The type of file system: ext4 in this example.
• Options:
  • _netdev – Configures the mount process to initiate before the volumes are mounted.
  • nofail – If the device does not exist, no errors are reported. This is a good option to use when an instance is used to create a custom image. Future instances created with that image will not include the block volume and might fail to boot without this option.
• Dump: The value 0 means do not use the obsolete dump utility.
• fsck: The value 0 means do not run fsck.

sudo mount -a
mount | grep /mnt
